ForkGuard Cold Storage

Purpose-engineered for sub-zero environments, ForkGuard Cold Storage provides extreme-strength protection from vehicle forks. It protects assets and infrastructure, while preventing fork-related injuries at ground level.

ForkGuard Cold Storage defends against shallow angular impacts and prevents damage from fork penetration. It also acts as a pallet stop or buffer, preventing stored goods encroaching into pedestrian areas or walkways.

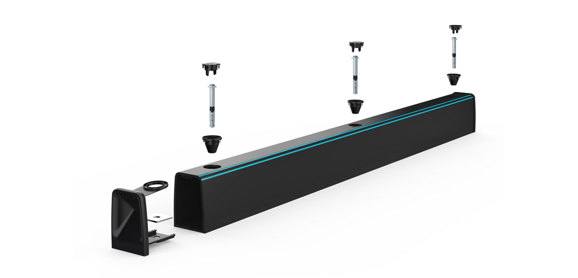

Floor-mounted and bolted from above, Cold Storage ForkGuard integrates with A-SAFE guardrails to offer the ultimate protection against vehicle forks.



Suitable for:
Impact energy information Impact energy diagram
Find out more
Tested to the following safety standards
PAS 13 Tested – safety barriers in industrial workplaces
Find out more
Solutions tailored to your needs

Your site-specific solution starts with a free, no-obligation safety evaluation

Product features

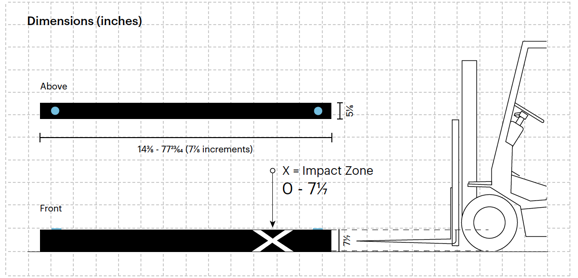

  • Impact Zone = 0 - 7 1/7 inch
  • Simple Install from Above
  • Fork Deflection
Find out more
Technical specification

Angle of approach:

90°

Angle of approach:

90°
Example vehicle weight and speed:

Equivalent Vehicle Weight

2.1 US Ton

Vehicle Speed

4 Mph

Vehicle energy

3,000 Joules

Transfer of energy

100% (3,000 Joules)
IED Weight
90°
Get the right protection

Our health and safety experts provide free risk assessments and specialist advice to identify the right level of protection for your facility. Book a no obligation consultation today.

Available in numerous lengths. Black and trimmed in blue. Suitable for vehicles and vehicle forks with an impact height of  0 – 183 mm.

Downloads
Installation instructions
Benefits sheet
Installation guide
Installation instructions
Safety certifications
PAS13 Tested Stamp

The British code of practice for safety barriers used in traffic management within workplace environments. It also gives recommendations for test methods for safety barrier impact resilience. It is a global benchmark for the testing and installation of workplace safety barriers.

Reports and certification
Reports and certification

Our safety products are the most heavily tested in the world. We are proud to give customers full visibility, providing copies of reports and certification and hosting live impact tests at our world-class innovation centre.
