Atlas Polygon Traffic Guardrail

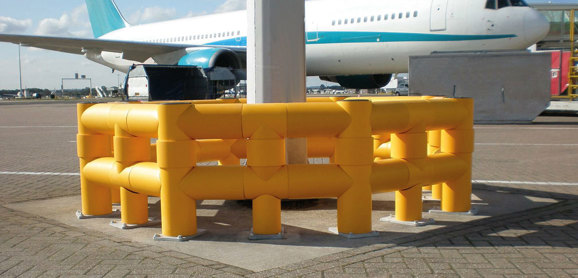

Atlas™ Polygon Traffic Guardrail is designed to defend vulnerable floodlight towers, masts and columns on airport stands and apron areas from damage. It offers premium protection against high-strength vehicle impacts.

The specially configured shape provides reinforced protection from all sides, making it ideal for any ground-mounted equipment or critical structures in proximity with baggage trucks and other service vehicles.

This robust solution has been purpose-engineered for airports with input from the British Airports Authority.



Suitable for:
Charlatte airport baggage truck Linde airport baggage truck Mini van Push back tug Unit load device
Impact energy information Impact energy diagram
Find out more
Tested to the following safety standards
TÜV Nord – independent certification PAS 13 Tested – safety barriers in industrial workplaces
Find out more
Solutions tailored to your needs

Your site-specific solution starts with a free, no-obligation safety evaluation

Technical specification

Angle of approach:

90°

Angle of approach:

90°

Angle of approach:

45°

Angle of approach:

22.5°
Example vehicle weight and speed:

Equivalent Vehicle Weight

6.3 US Ton

Vehicle Speed

6 Mph

Vehicle energy

20,500 Joules

Transfer of energy

100% (20,500 Joules)
IED Weight
90°
IED Weight
45°
IED Weight
22.5°
Get the right protection

Our health and safety experts provide free risk assessments and specialist advice to identify the right level of protection for your facility. Book a no obligation consultation today.

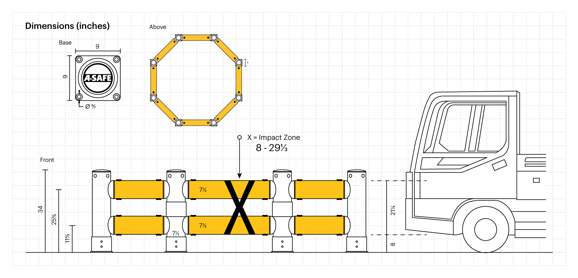

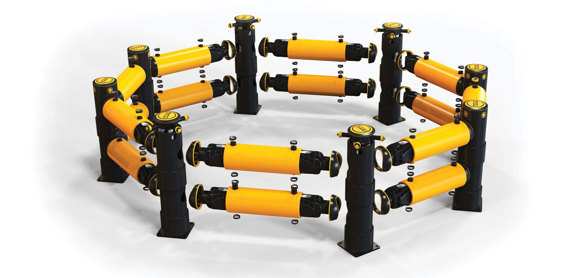

Available in numerous lengths, and in yellow, black or grey as standard.  Multi-directional posts ensure maximum flexibility and a tailored fit around all equipment and to any airport location.  A fully modular system means rails and posts can be quickly and easily replaced in-situ without removing adjacent guardrail sections. Suitable for heavyweight vehicles with an impact height of 8 – 29 1⁄3inches.

Downloads
Installation instructions
Test videos

Ramp test video

Safety certifications
Tuvlogo PAS

TÜV Nord is a global leader in independent testing and certification. A TÜV certificate is a mark of assurance that a product has been tested to an internationally recognised standard and the results have been independently verified. TÜV Nord tests industrial safety barriers to the standards in PAS 13.

PAS13 Tested Stamp

The British code of practice for safety barriers used in traffic management within workplace environments. It also gives recommendations for test methods for safety barrier impact resilience. It is a global benchmark for the testing and installation of workplace safety barriers.

Reports and certification
Reports and certification

Our safety products are the most heavily tested in the world. We are proud to give customers full visibility, providing copies of reports and certification and hosting live impact tests at our world-class innovation centre.

Find out more
Request certificates

Our safety experts will provide any reports and certification you require
